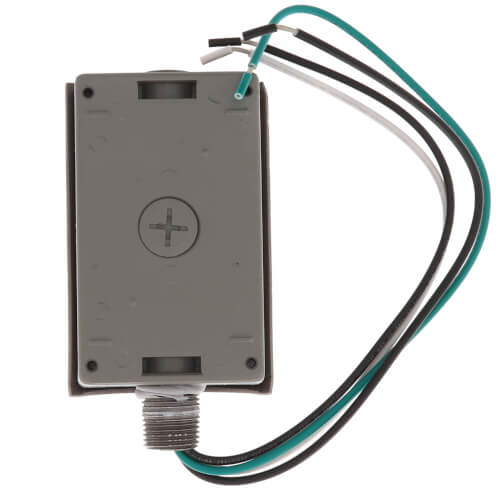

Icm517 Wiring Diagram. ICM517 SinglePhase Surge Protective Device (Install) YouTube Mounting Diagram Thread one lock nut all the way down the ICM517 nipple as far as it will go and remove the second lock nut, setting it aside For more information on our complete range of American-made products - plus wiring diagrams, troubleshooting tips and more, visit us at www.icmcontrols.com ELECTRICAL SHOCK HAZARD - Before installing this unit, turn of power at the main service panel by removing the fuse or switching the appropriate circuit breaker to the OFF position.
How To Convert 240V Receptacles Or Branch Circuits To 120V! (STEP BY from www.youtube.com
ICM Controls ICM517 Single Phase Surge Protection https://amzn.to/3OCoH5q Tools I use Fieldpiece SC440 True RMS Clamp Meter https://amzn.to/3rdGZ0e Voltage Tester, TESMEN TN-213 Non-Contact. Installing an Icm517 Surge Protector Wiring Diagram is a great way to ensure that your devices can stay safe from unexpected power surges
How To Convert 240V Receptacles Or Branch Circuits To 120V! (STEP BY

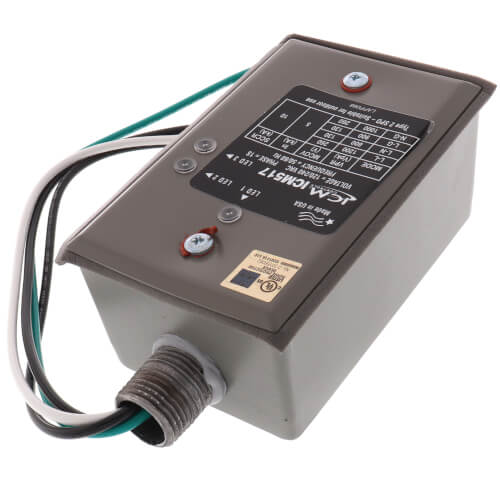

PAGE 1 ICM 517 I C M 517 SURGE PROTECTIVE DEVICE ELECTRICAL SHOCK HAZARD - Before installing this unit, turn off power at the main service panel by removing the fuse or switching the appropriate circuit breaker to the OFF position The ICM517 is a Single-Phase Surge Protective Device with a metal, NEMA 3R Rated enclosure Page 1 ICM517A Surge Protective Device INSTALLATION, OPERATION & APPLICATION GUIDE For more information on our complete range of American-made products - plus wiring diagrams, troubleshooting tips and more, visit us at www.icmcontrols.com Device is intended to be connected only to panel connection.
5 Pin CDI Wiring Diagram (Pictured AND Explained!) OffRoad Official. Suitable for use on a circuit capable of delivering not more than 10,000 rms symmetrical amperes, 240V max, when protected by a circuit breaker rated 20-60A maximum and 120V minimum Device is intended to be connected only to panel connection
Complete PLC Wiring Diagram with SMPS, Relay Card, Contactor in 2023. Installing an Icm517 Surge Protector Wiring Diagram is a great way to ensure that your devices can stay safe from unexpected power surges ICM Controls ICM517 Single Phase Surge Protection https://amzn.to/3OCoH5q Tools I use Fieldpiece SC440 True RMS Clamp Meter https://amzn.to/3rdGZ0e Voltage Tester, TESMEN TN-213 Non-Contact.
